Here are eight photos of one Monitor installation.
Images of Monitor: 8
Contest 365
Monitor
"Odyssey III" - Youngstown, New York. Final operating line routing, through tubes through the transom. A clever installation, but we do not recommend line leads that cannot be seen. Chafing and line breakage can occur in hidden line runs.
![](https://static.wixstatic.com/media/8edbc5_3997a7deb12c419880b10c7beae9c34a~mv2.png/v1/fill/w_518,h_345,al_c,q_85,enc_auto/8edbc5_3997a7deb12c419880b10c7beae9c34a~mv2.png)
Contest 365
Monitor
"Odyssey III" - Youngstown, New York. The operating lines entering the transom tubes can be seen.
![](https://static.wixstatic.com/media/8edbc5_572545cdab0044bdbc7aee4b786df81c~mv2.png/v1/fill/w_304,h_455,al_c,q_85,enc_auto/8edbc5_572545cdab0044bdbc7aee4b786df81c~mv2.png)
Contest 365
Monitor
"Odyssey III" - Youngstown, New York. Operating lines come up through grating.
![](https://static.wixstatic.com/media/8edbc5_44cd5256487e4768ac01062208ffb5de~mv2.png/v1/fill/w_76,h_116,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/8edbc5_44cd5256487e4768ac01062208ffb5de~mv2.png)
Contest 365
Monitor

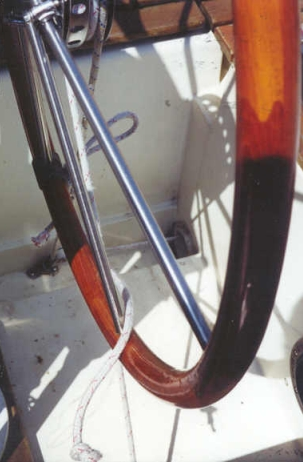

"Odyssey III" - Youngstown, New York. A bit of line rub on the forward ends of the tubes can be seen - not a good condition.
![](https://static.wixstatic.com/media/8edbc5_72899cd12fa74deaab7e2d6428790bbb~mv2.png/v1/fill/w_76,h_116,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/8edbc5_72899cd12fa74deaab7e2d6428790bbb~mv2.png)
Contest 365
Monitor

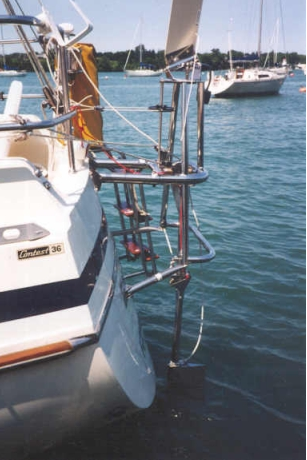

"Odyssey III" - Youngstown, New York. The original operating line setup, over the transom - the simplest, and recommended, installation.
![](https://static.wixstatic.com/media/8edbc5_8b6badacebdc45e7b2d8ac1ba89fa8ab~mv2.png/v1/fill/w_77,h_115,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/8edbc5_8b6badacebdc45e7b2d8ac1ba89fa8ab~mv2.png)
Contest 365
Monitor
"Odyssey III" - Youngstown, New York. Original line setup.
![](https://static.wixstatic.com/media/8edbc5_f98a6b72e47240ce9595dfe52e98b80f~mv2.png/v1/fill/w_76,h_115,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/8edbc5_f98a6b72e47240ce9595dfe52e98b80f~mv2.png)
Contest 365
Monitor
"Odyssey III" - Youngstown, New York. Operating lines coming forward on port side.
![](https://static.wixstatic.com/media/8edbc5_59a454cde15f4be0a1e87406a23d00a0~mv2.png/v1/fill/w_57,h_39,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/8edbc5_59a454cde15f4be0a1e87406a23d00a0~mv2.png)
Contest 365
Monitor
"Odyssey III" - Youngstown, New York. The Monitor steering at sea
![](https://static.wixstatic.com/media/8edbc5_8470bfb4408d47b3a21237ab4e37449b~mv2.png/v1/fill/w_78,h_117,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/8edbc5_8470bfb4408d47b3a21237ab4e37449b~mv2.png)
